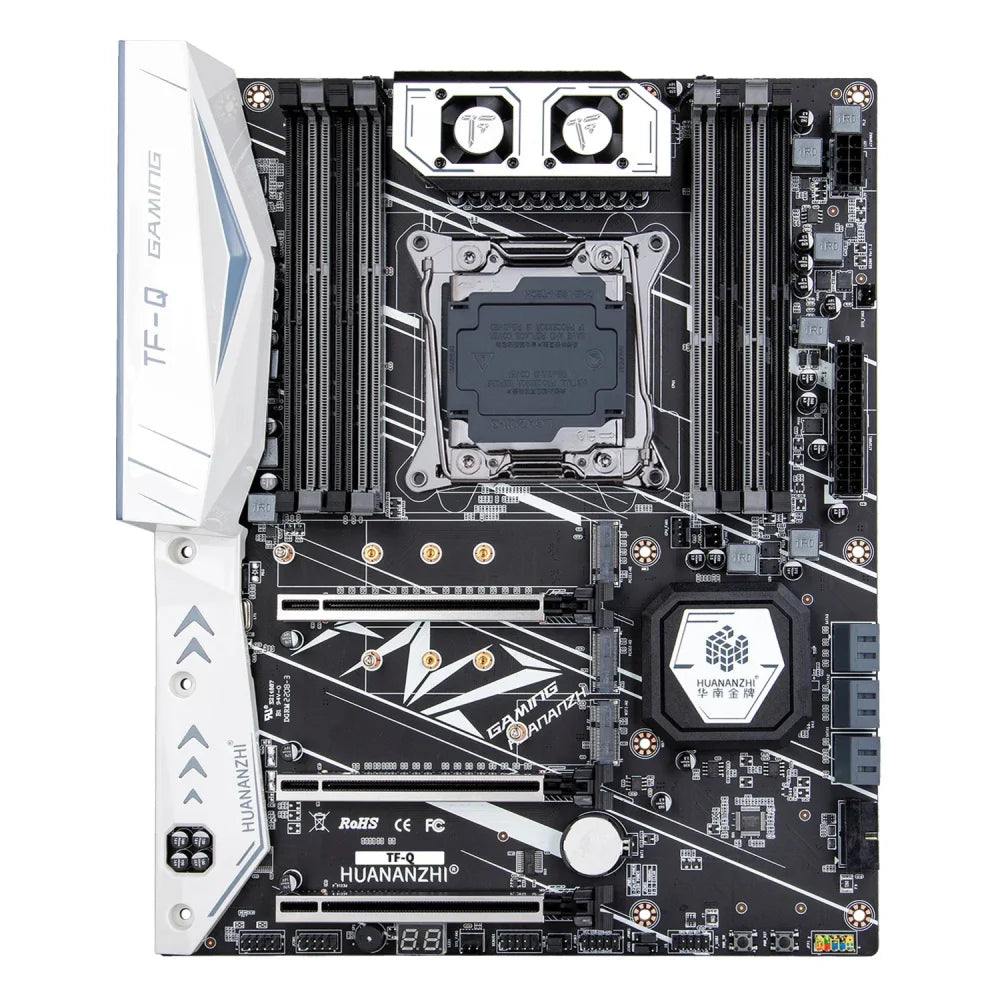

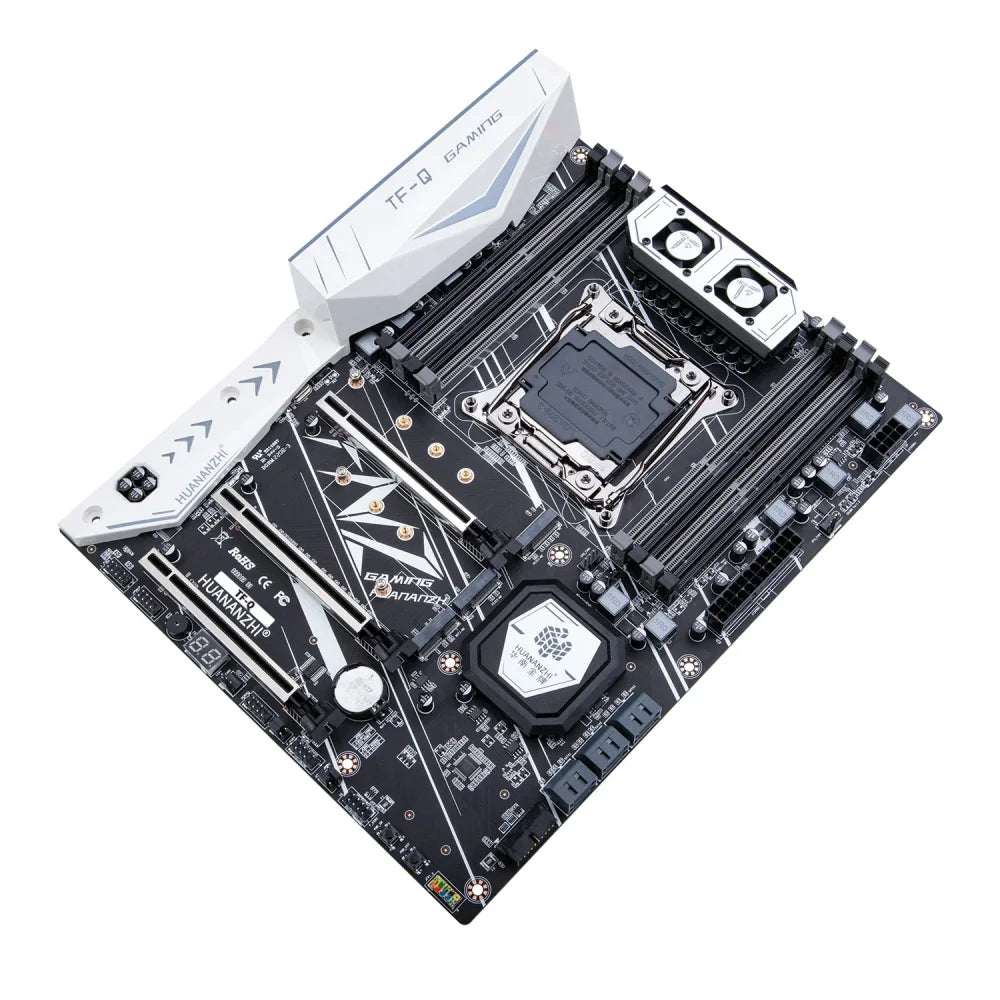

X99 TF Q LGA2011-3 ATX Gaming Motherboard for Xeon E5 DDR3 DDR4 RECC NON-ECC M.2

The X99 TF-Q motherboard is designed for gaming and high-performance computing, supporting Intel Xeon E5 processors on the LGA2011-3 platform. It offers flexible memory options with both DDR3 and DDR4 support, making it ideal for advanced users looking to maximize system memory. With its robust expansion slots, multiple M.2 interfaces for NVMe SSDs, and gigabit Ethernet, this motherboard delivers powerful performance for gaming, workstations, and server environments.

Key Features & Benefits:

• Supports Intel Xeon E5 Processors: Compatible with a wide range of LGA2011-3 platform processors.
• Dual Memory Support: Four DDR3 and four DDR4 memory slots, offering up to 128GB in total.
• Flexible Storage Options: Includes six SATA 3.0 ports and two M.2 NVMe slots for high-speed storage options.
• Multiple Expansion Slots: Equipped with PCIe 3.0 x16 and x4 slots for graphics cards and other expansion cards.
• 10-layer PCB with 6-phase Power Supply: Ensures stable power delivery for optimal performance and system longevity.
• Advanced Connectivity: Rear panel with PS/2, USB 2.0, USB 3.0, gigabit Ethernet, and 7.1 surround sound audio support.
• Enhanced Cooling and Power: Comes with CPU and system fan connectors and a 24-pin + 8-pin power interface for reliable cooling and power distribution.

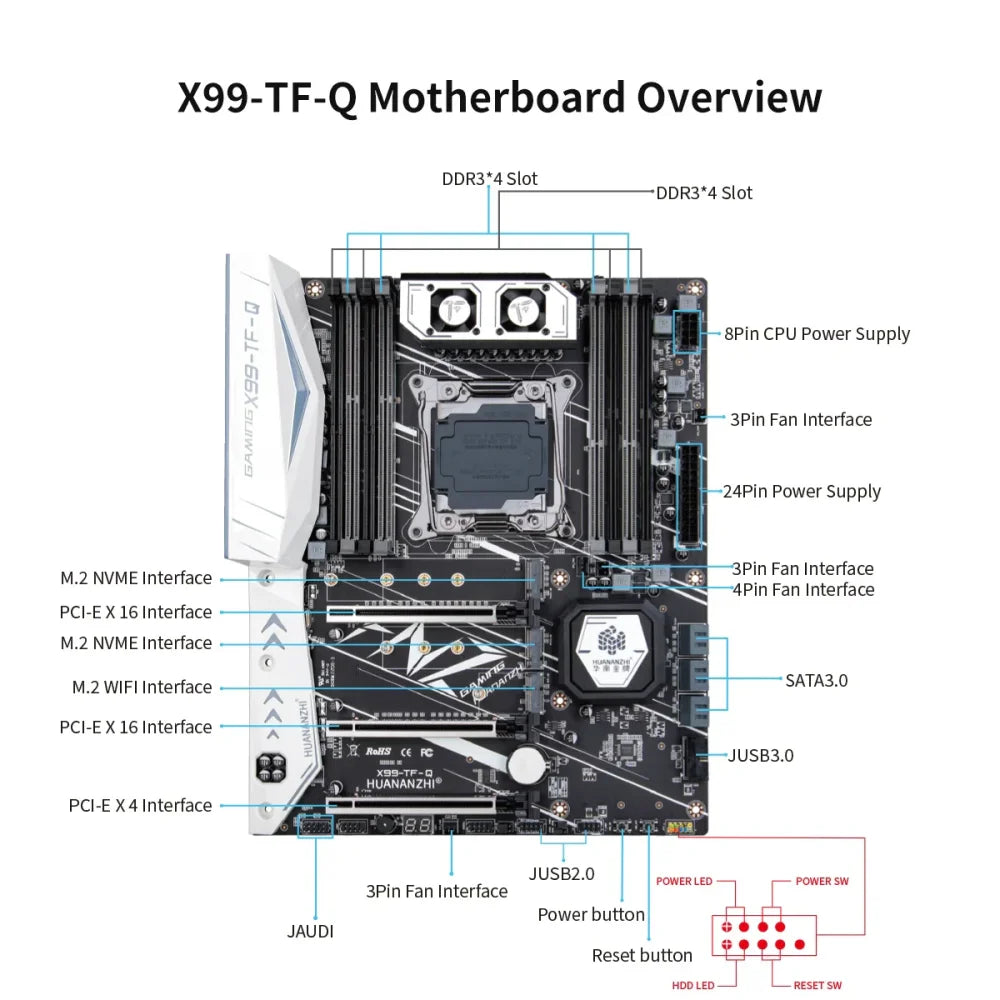

Specifications:

• Model: TF-Q Motherboard
• CPU Socket: LGA2011-3, supports Intel Xeon E5 processors
• Main Chipset: Q87 chipset (shipped randomly)
• Memory Slots: 4 DDR3 slots, 4 DDR4 slots
• Memory Standard: DDR3 (1866/1600/1333MHz), DDR4 (2400/2133/1866MHz)
• Maximum Memory: 128GB total, DDR3 and DDR4 cannot be used simultaneously

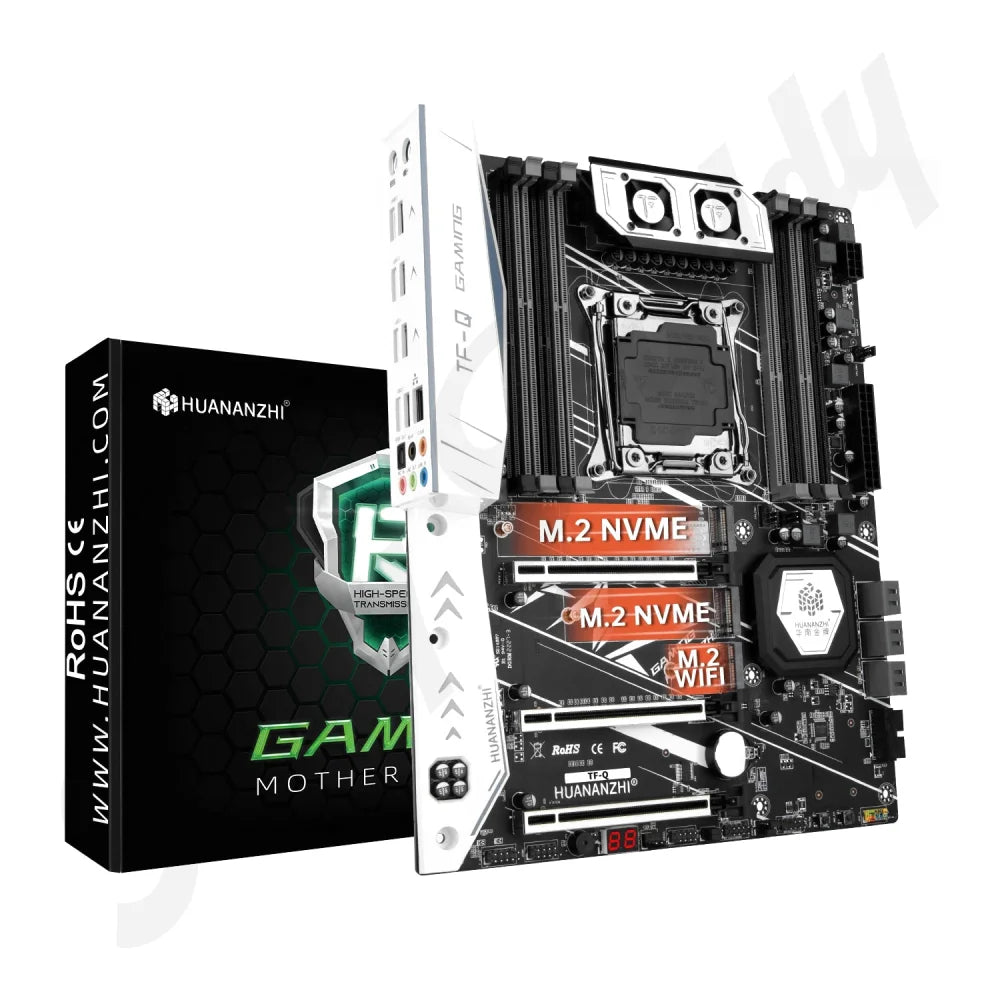

• Storage Interfaces: 6 SATA 3.0 (6Gb/s), 2 M.2 NVMe (1 PCIe X4 3.0, 1 PCIe X4 2.0), 1 M.2 WiFi NGFF
• Expansion Slots: 2 PCIe 3.0 x16, 1 PCIe 3.0 x4
• Audio: 7.1 surround sound, optical audio output
• Network Interface: Gigabit Ethernet
• Power Interface: 24-pin + 8-pin power connectors
• Cooling: 1 CPU fan pin, 3 system fan pins

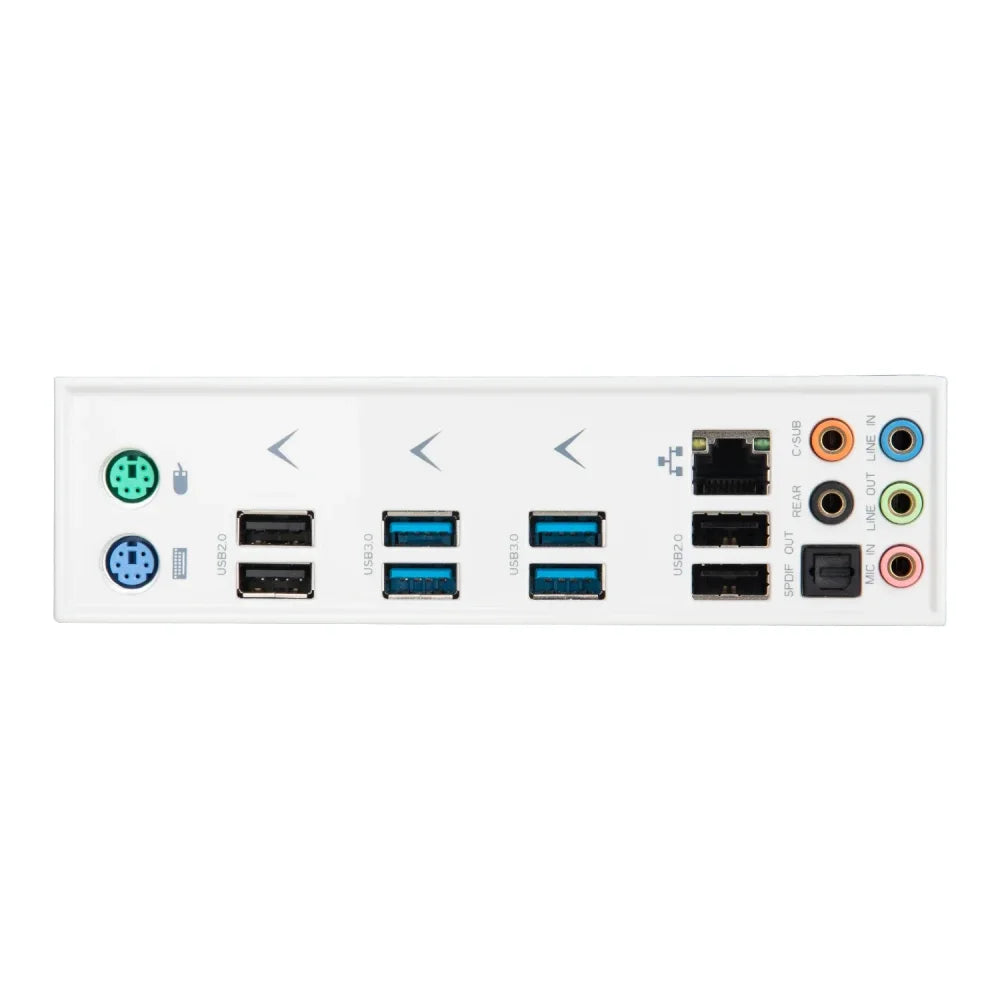

• Rear I/O Ports: 1 PS/2 keyboard/mouse port, 4 USB 2.0, 4 USB 3.0, 1 Gigabit Ethernet, 1 5-hole audio port, 1 optical audio interface
• Front Panel Interface: 2 USB 2.0 pins, 1 USB 3.0 pin, 1 front audio pin, 1 COM pin, 1 motherboard buzzer, 1 post card, start/restart buttons
• Supported Systems: Windows 7, Windows 10, Windows 11
• Form Factor: ATX (300mm x 244mm)
• RGB Support: Not supported
