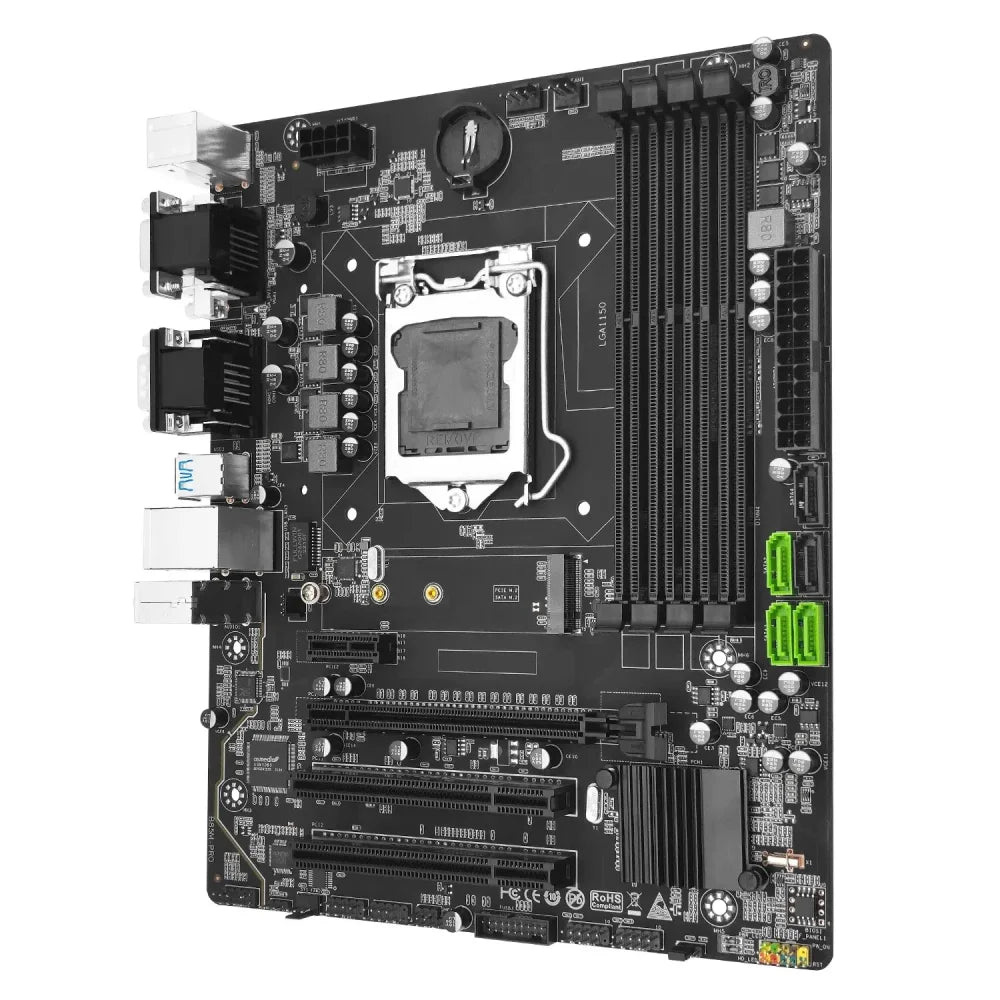

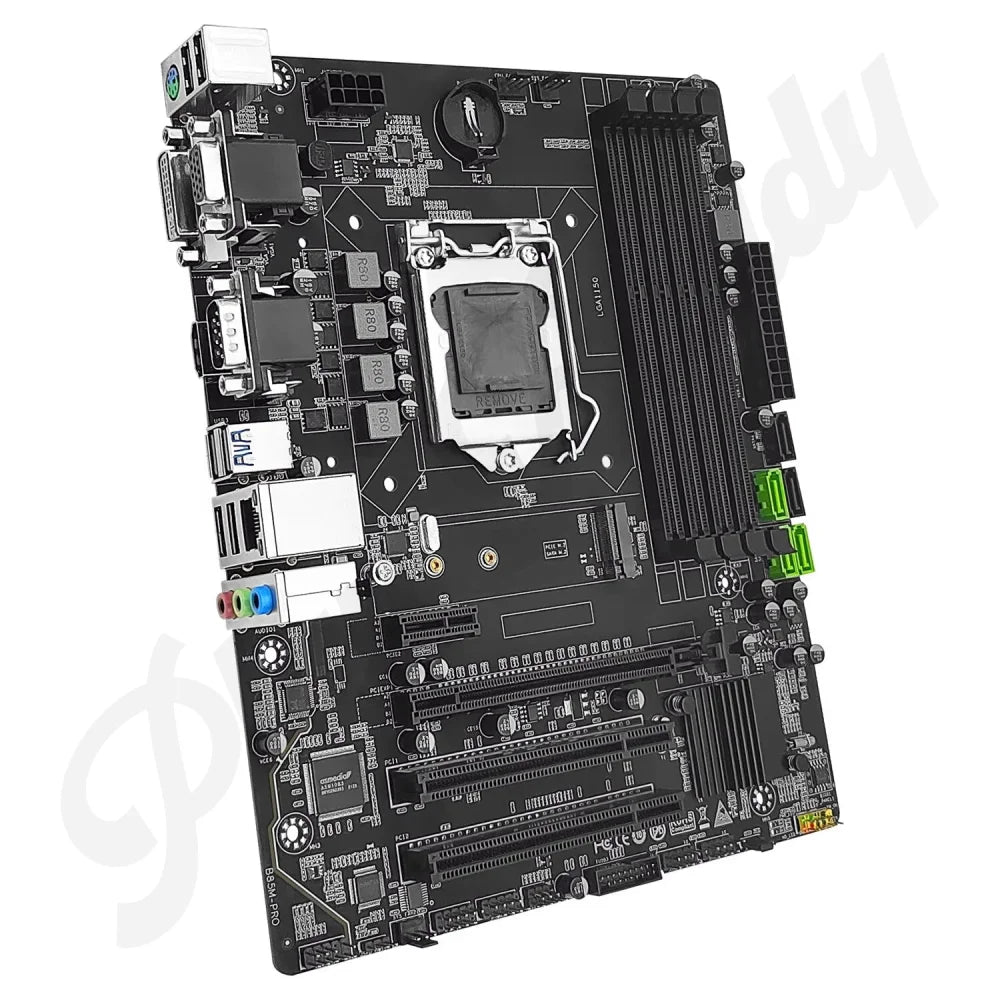

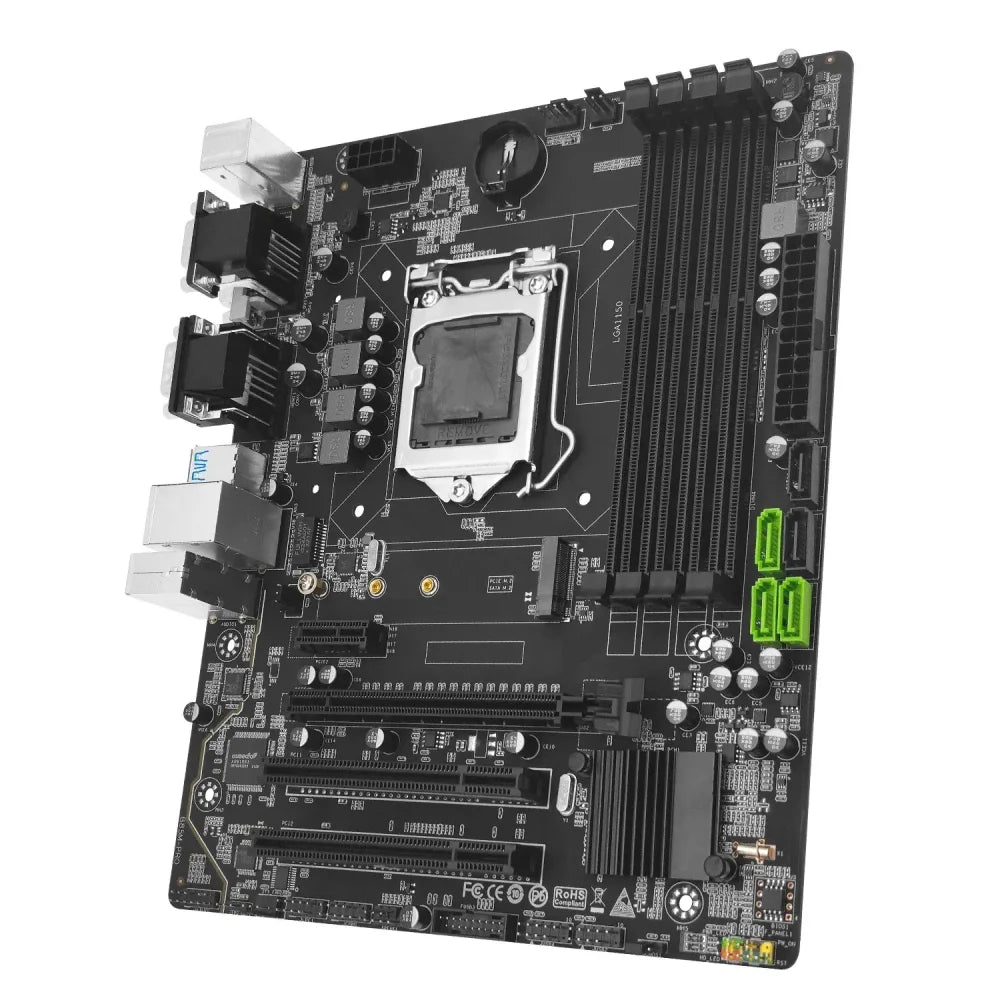

B85M PRO Intel LGA1150 DDR3 RAM NVMe M.2 Gaming Motherboard for i3, i5, i7 CPUs

The B85M PRO motherboard is designed to support Intel's i3, i5, and i7 CPUs, offering enhanced performance and gaming capabilities.

Specifications:

• Memory Type: DDR3
• Chipset: Intel B85
• Socket Type: LGA1150
• Maximum RAM Capacity: 32 GB
• Number of Memory Slots: 4
• SATA Ports: 4
• M.2 Slots: 1 (supports 2280 M.2 SSDs)
• USB Support: 2.0 and 3.0
• PCI-E Standards: PCI-E 2.0
• Form Factor: Micro-ATX
• Number of PCI Slots: 2
• Number of PCIe x1 Slots: 1
• Number of PCIe x16 Slots: 1

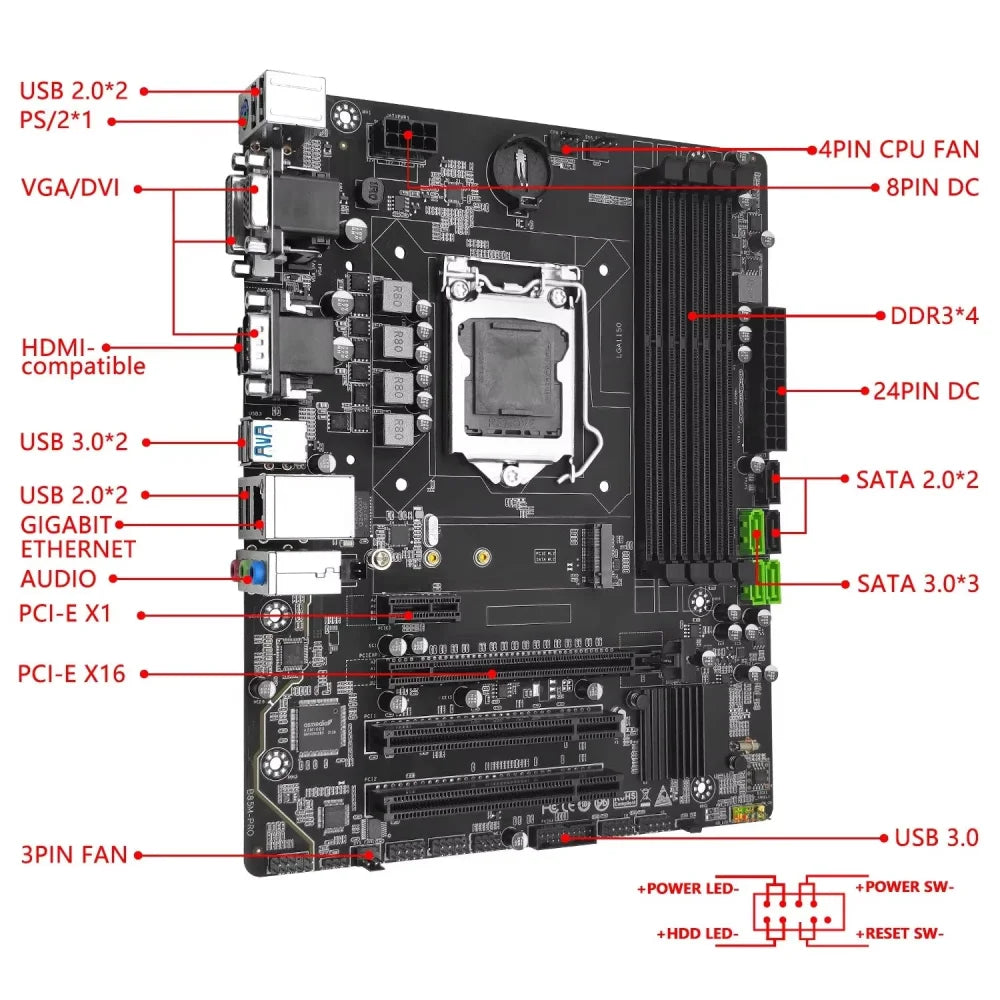

• Back I/O Ports: 1 x RJ45
• Onboard Connectors: 24-pin Main Power Connector, CPU Fan Connector(s), AAFP Connector

Key Features:

• Intel Core Compatibility: Optimized for Intel Core i3, i5, and i7 CPUs, ensuring high performance.
• DDR3 RAM Memory Support: Supports up to 32 GB of DDR3 RAM for extensive multitasking and gaming.
• M.2 Slot Feature: Provides an M.2 slot for SSD expansion, boosting storage capabilities.
• ROHS Quality Certification: Meets international quality and safety standards.
• USB 3.0 Support: Enables fast data transfers between devices.
• Audio & Video Application: Designed for superior audio output and video performance, ideal for multimedia applications.
