X99-8D4 ATX Motherboard Set + Xeon E5 2650 V4 CPU + 16GB DDR4 2133MHZ RAM Bundle

X99-8D4 ATX Motherboard Set + Xeon E5 2650 V4 CPU + 16GB DDR4 2133MHz RAM Bundle

This high-performance bundle includes the ZSUS X99-8D4 ATX motherboard, Intel Xeon E5 2650 V4 processor, and 16GB DDR4 RAM. Ideal for powerful workstation builds or server applications.

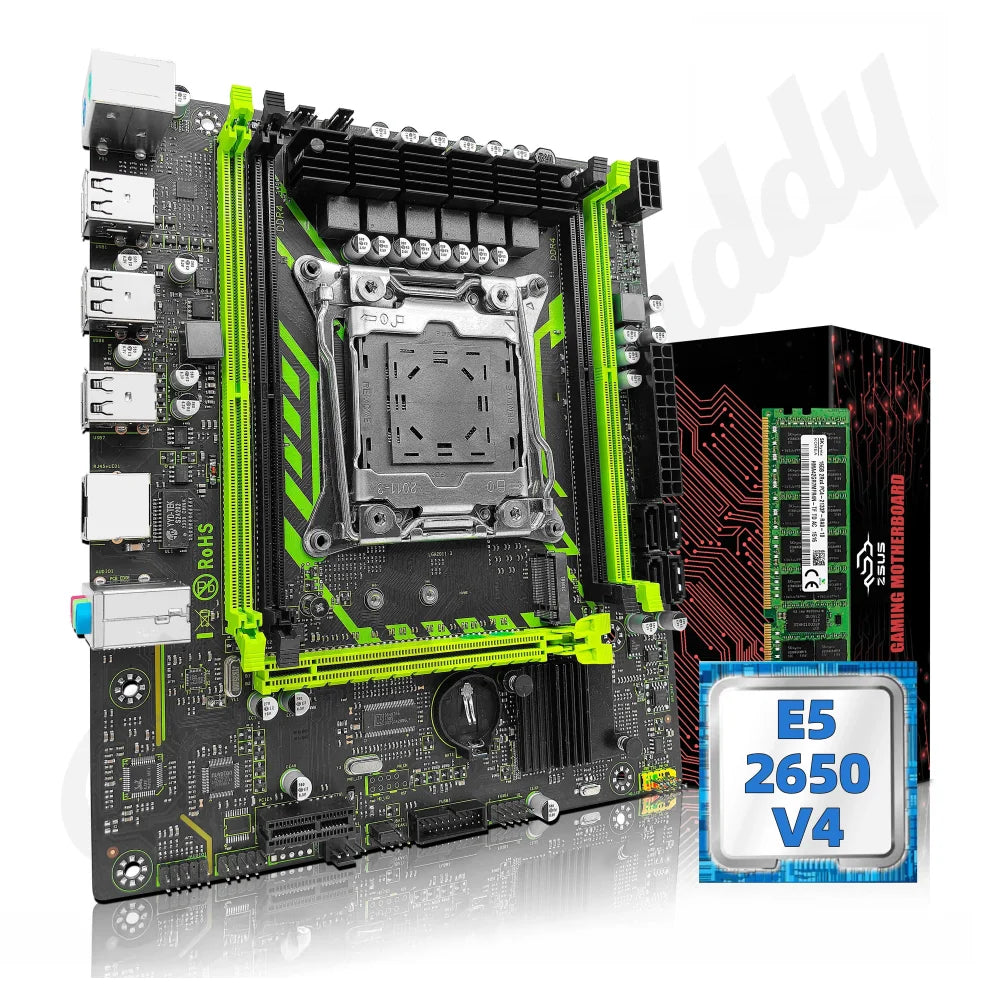

Full Bundle Contents:

• Motherboard: ZSUS X99-8D4 ATX
• Processor: Intel Xeon E5 2650 V4 (12 cores/24 threads)
• RAM: 16GB DDR4 2133MHz ECC REG (1x 16GB)

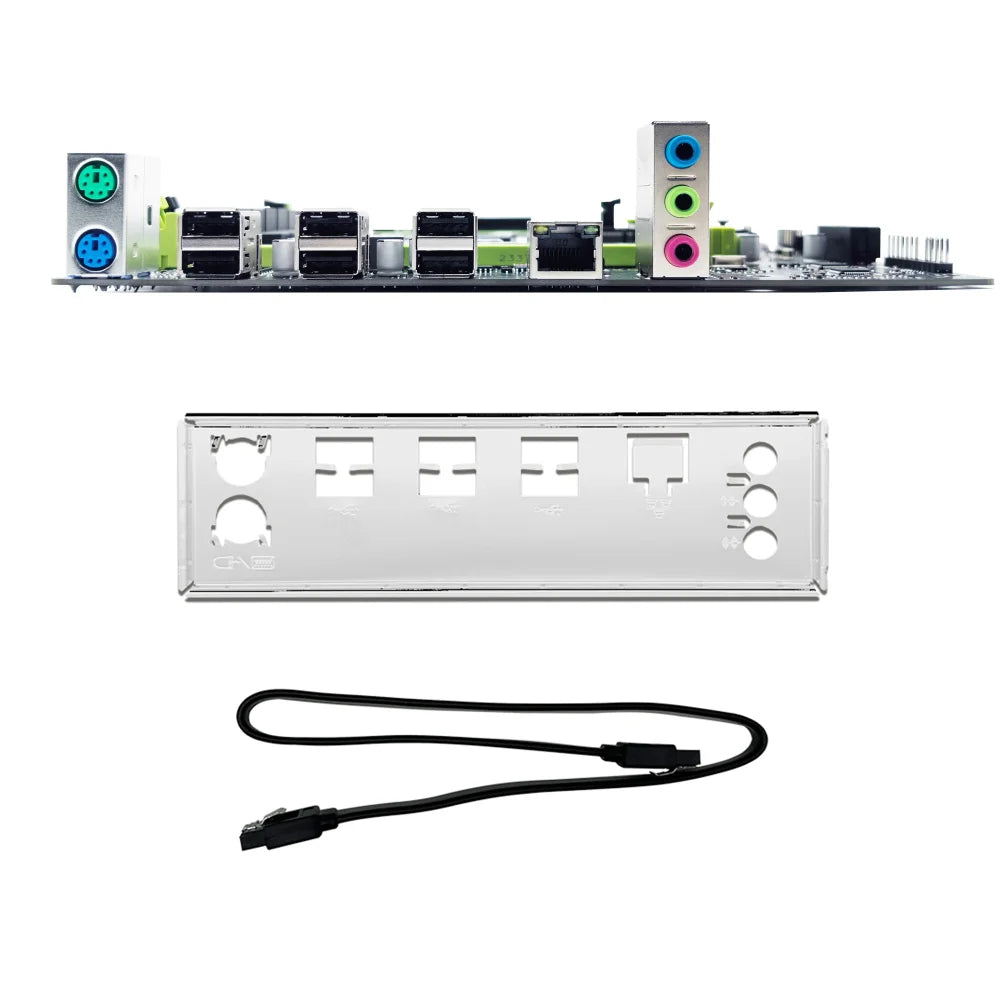

• Accessories: I/O shield, SATA cables

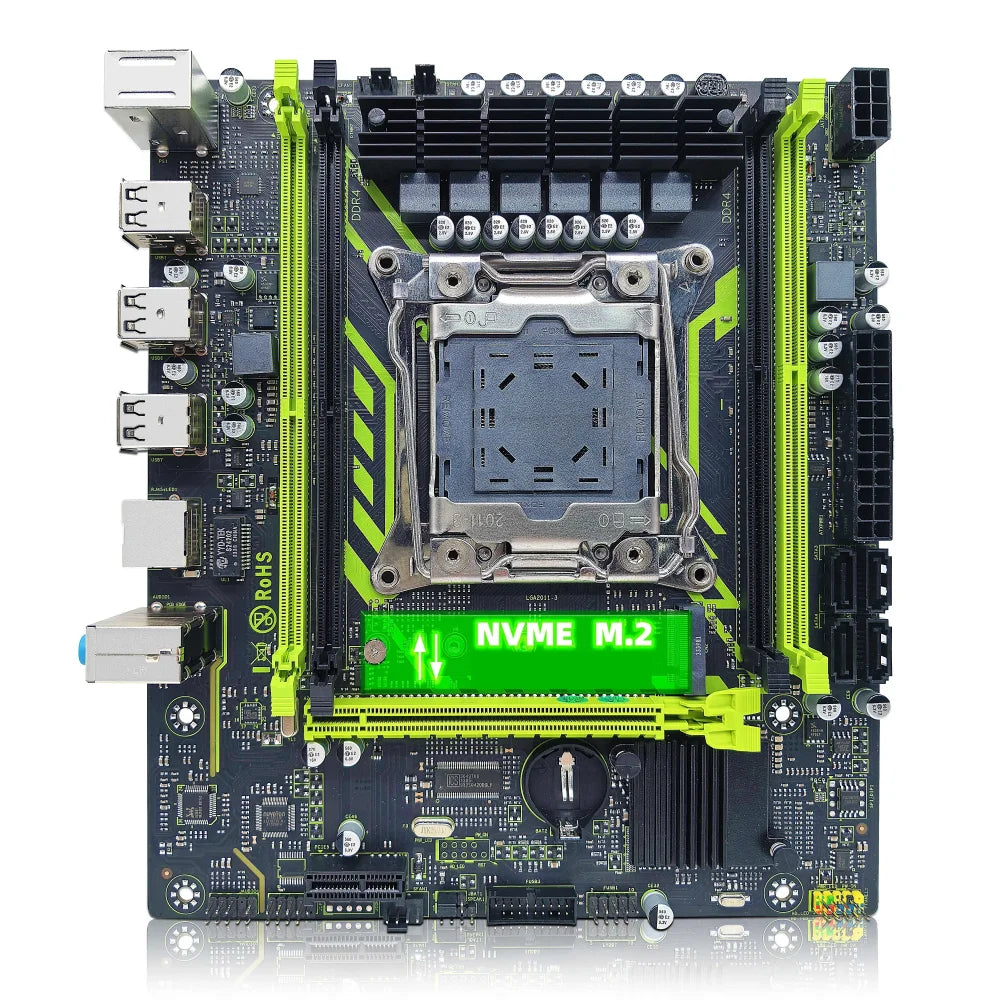

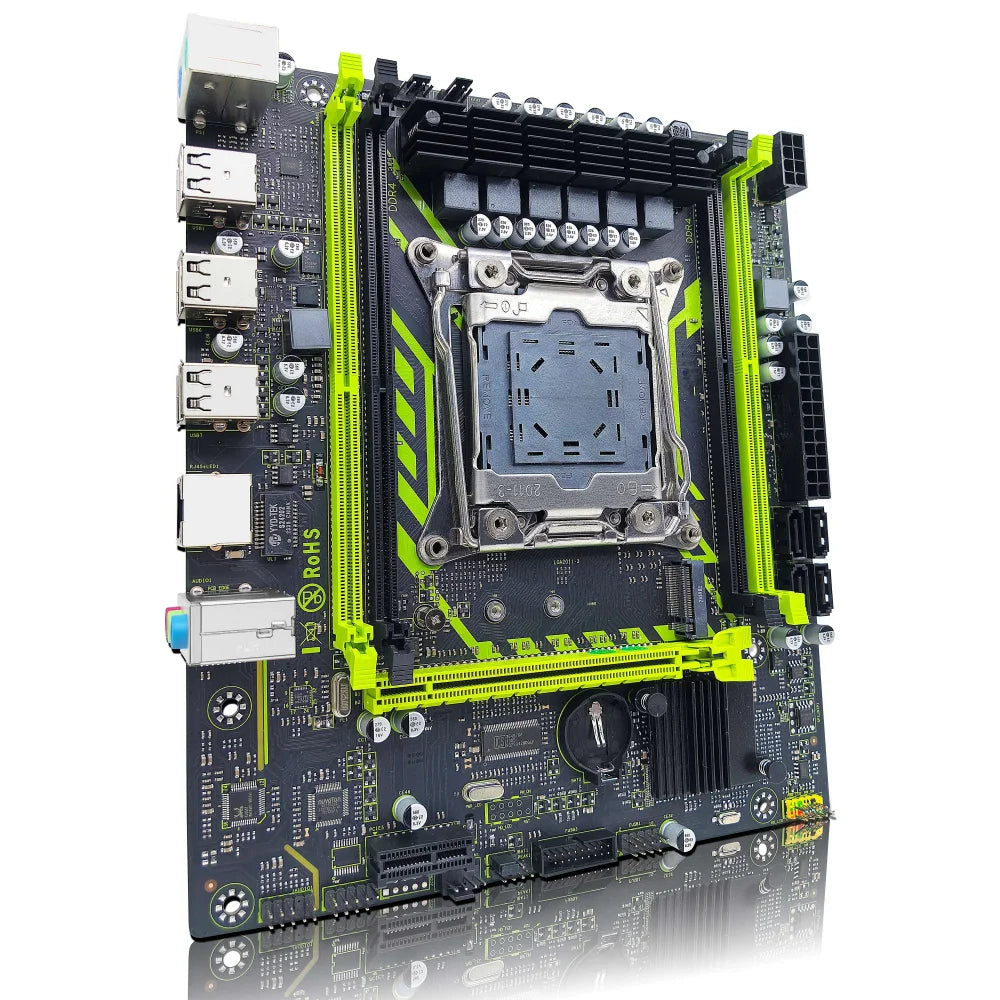

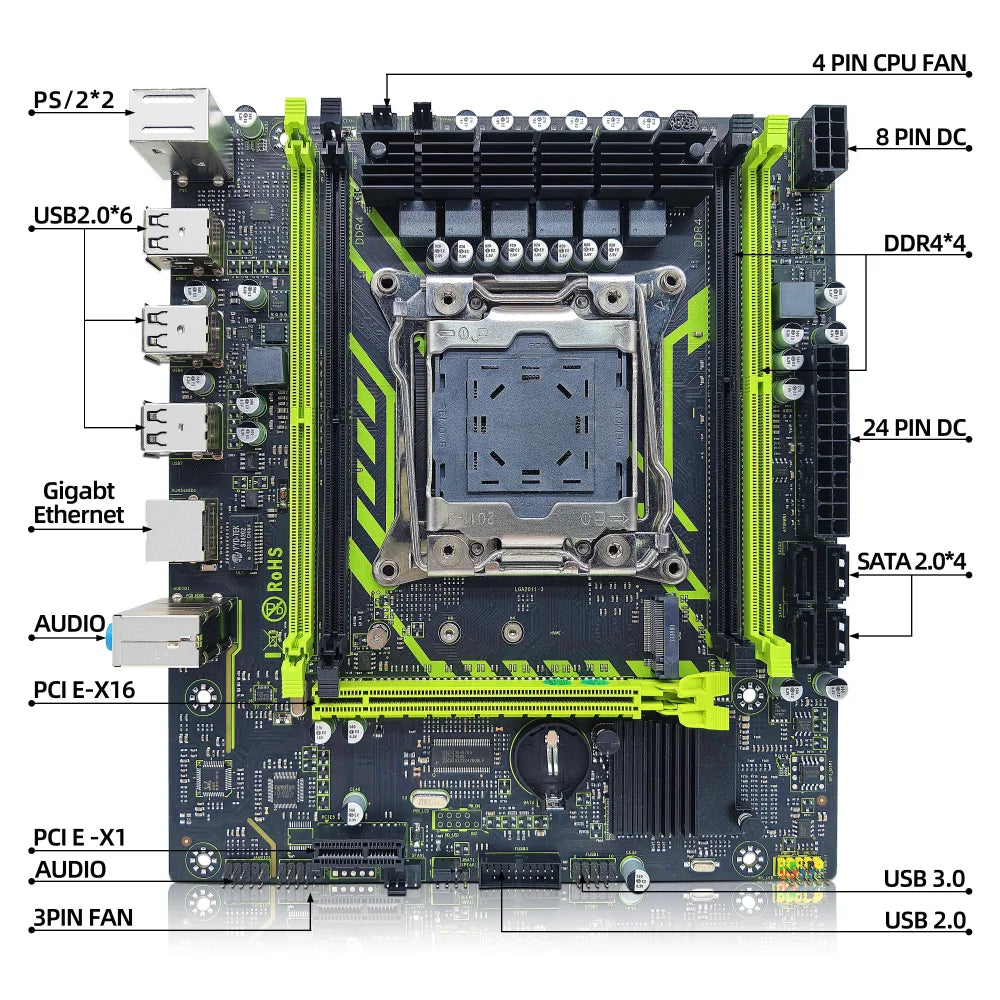

Motherboard Information:

• Model: ZSUS X99-8D4
• CPU Socket: LGA 2011-3 (supports V3/V4 series processors)
• Chipset: HM55 chipset
• Memory Support: Dual channel DDR4, up to 2400MHz
• Maximum RAM Capacity: 128GB (4x DDR4 slots)
• Audio: 1 audio interface (Mic-in, Line-out, Line-in)
• Ethernet: Realtek Gigabit Ethernet card
• USB Ports: 6x USB 2.0
• PCIe Slots: 2x PCIe x16, 1x PCIe x1
• SATA Ports: 4x SATA 2.0
• M.2 Slot: 1x M.2 (supports PCIe M.2)
• Power Connectors: 1x 8-pin, 1x 24-pin standard power outlet

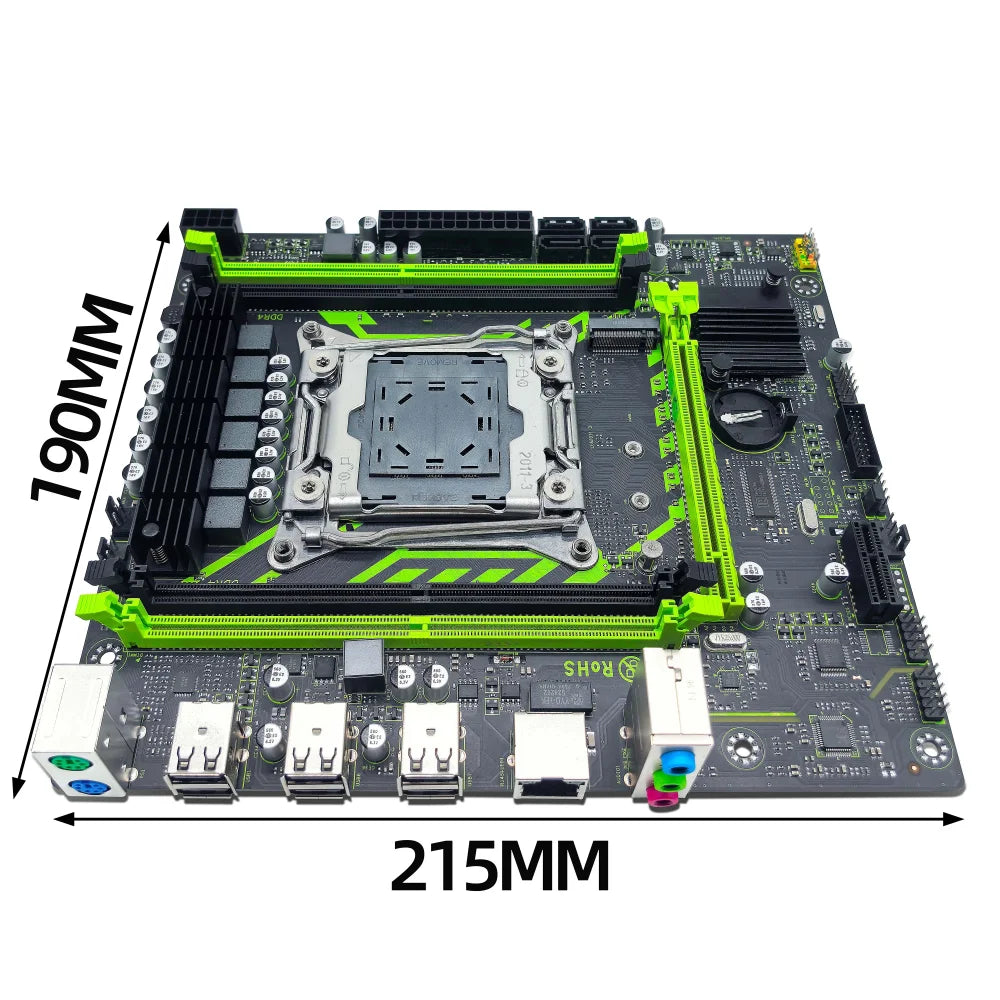

• Dimensions: 216mm x 190mm
• Condition: Brand new

Processor Information:

• Model: Intel Xeon E5 2650 V4
• Cores/Threads: 12 cores, 24 threads
• Base Frequency: 2.2GHz (up to 2.9GHz with Turbo Boost)
• Cache: 30MB L3
• Technology: 14nm
• Condition: Refurbished, fully tested and working

Memory Information:

• Type: ECC REG (server memory)
• Frequency: DDR4 2133MHz
• Capacity: 16GB (1x 16GB)
• Condition: Refurbished, fully tested and working

Installation Note:

For installing memory, all RAM must be installed first in slots #1 and #2 (green slots). The black RAM slots (#3 and #4) cannot operate independently. Ensure memory is inserted into the yellow main slots first for proper operation.
