X99 Gaming mATX Motherboard Set + Xeon E5 2630 V4 CPU + DDR4 16GB REG ECC Memory

X99 Gaming mATX Motherboard Set + Xeon E5 2630 V4 CPU + DDR4 16GB REG ECC Memory

This motherboard set offers flexibility with three purchase options: motherboard only, motherboard + CPU, or motherboard + CPU + 16GB RAM. Choose the setup that best fits your needs.

Options:

• 1. Motherboard x1
• 2. Motherboard x1 + CPU x1
• 3. Motherboard x1 + CPU x1 + 16GB RAM x1

CPU Specifications:

• Processor Series: Intel Xeon
• Model Number: E5 2630 V4
• Processor Speed: 2.2GHz
• Socket Type: LGA 2011-3
• Stepping: SR2R7
• Number of Cores: 10
• Number of Threads: 20
• L3 Cache: 25MB
• Power Consumption: 85W
• Condition: Refurbished, fully tested and working

Memory Specifications:

• Type: ECC REG (server memory)
• Frequency: DDR4 2133MHz
• Capacity: 16GB (1x 16GB)
• Condition: Brand new

Notice: All RAM must be installed in the grey slots first for priority. Incorrect installation of the front USB cable into the designated yellow USB pin may cause the computer to fail to start.

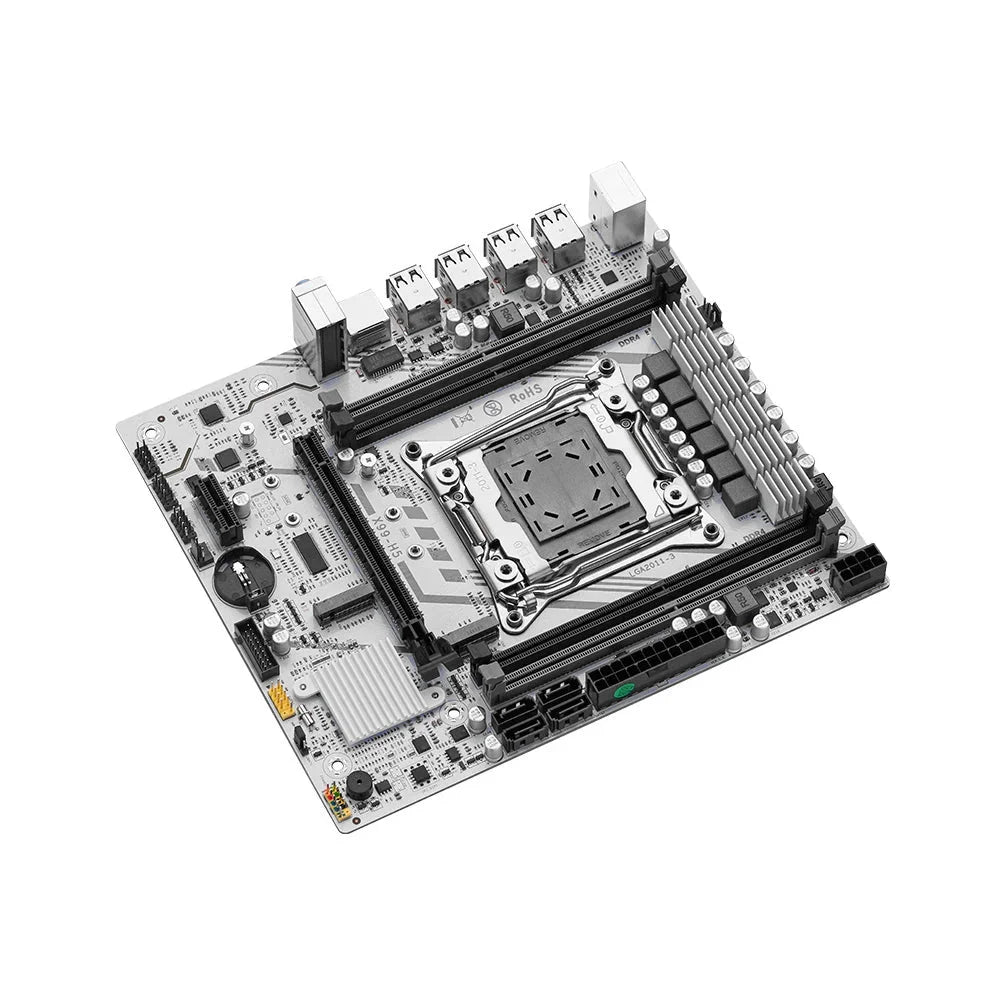

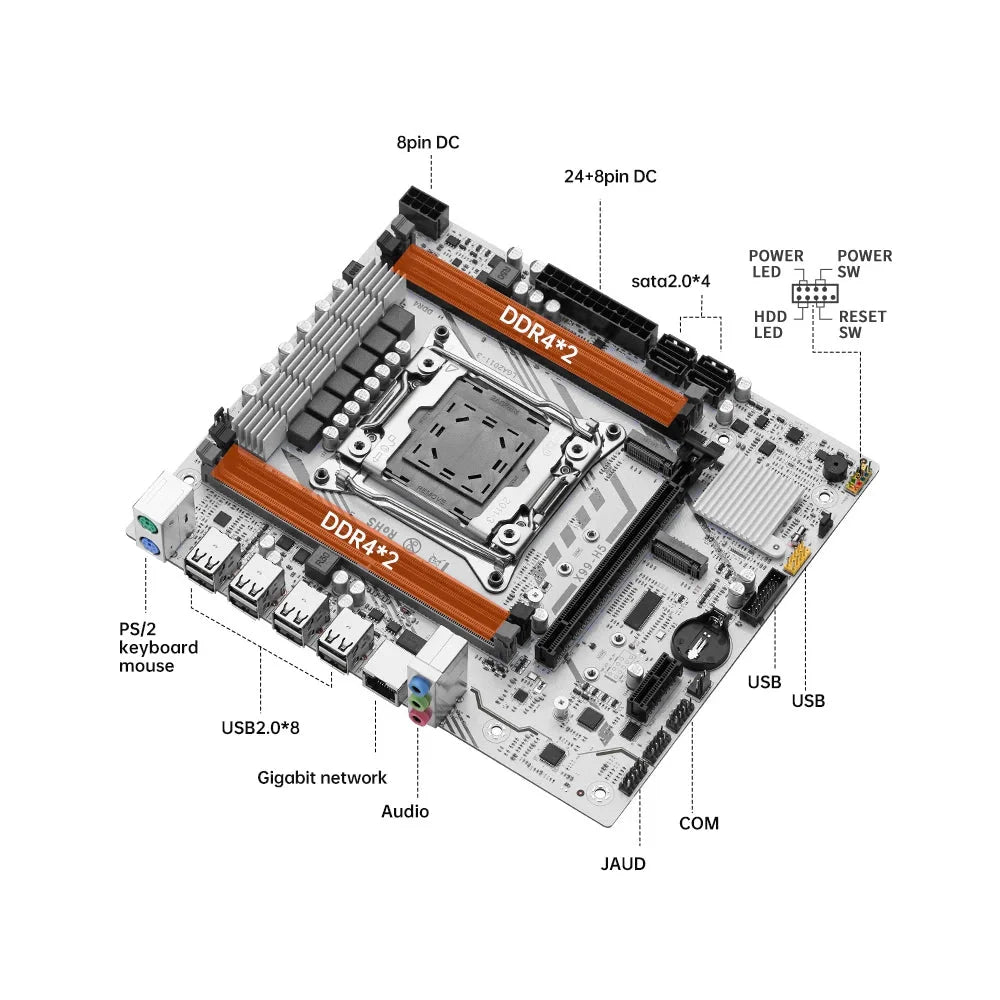

Motherboard Specifications:

• Chipset: H51/H55/H5 (random)
• Condition: Full new
• Socket Type: LGA 2011-3
• Structure: mATX
• VGA Slot: PCI-E X16
• Power Interface: 24-pin + 8-pin
• CPU Supported: Intel Xeon E5 V3 and V4 series
• Memory Slots: 4x DDR4
• Max Memory Capacity: 64GB (4x 16GB DDR4 2133/2400/2666/3200MHz)
• Memory Type Supported: Non-ECC, ECC, and REG ECC
• Integrated Video: None
• Storage Support: NVMe M.2 SSD
• Dimensions: 22cm x 19cm
• Condition: Brand new

Make sure your power supply is capable of supporting this platform (at least a 500W power supply is recommended).

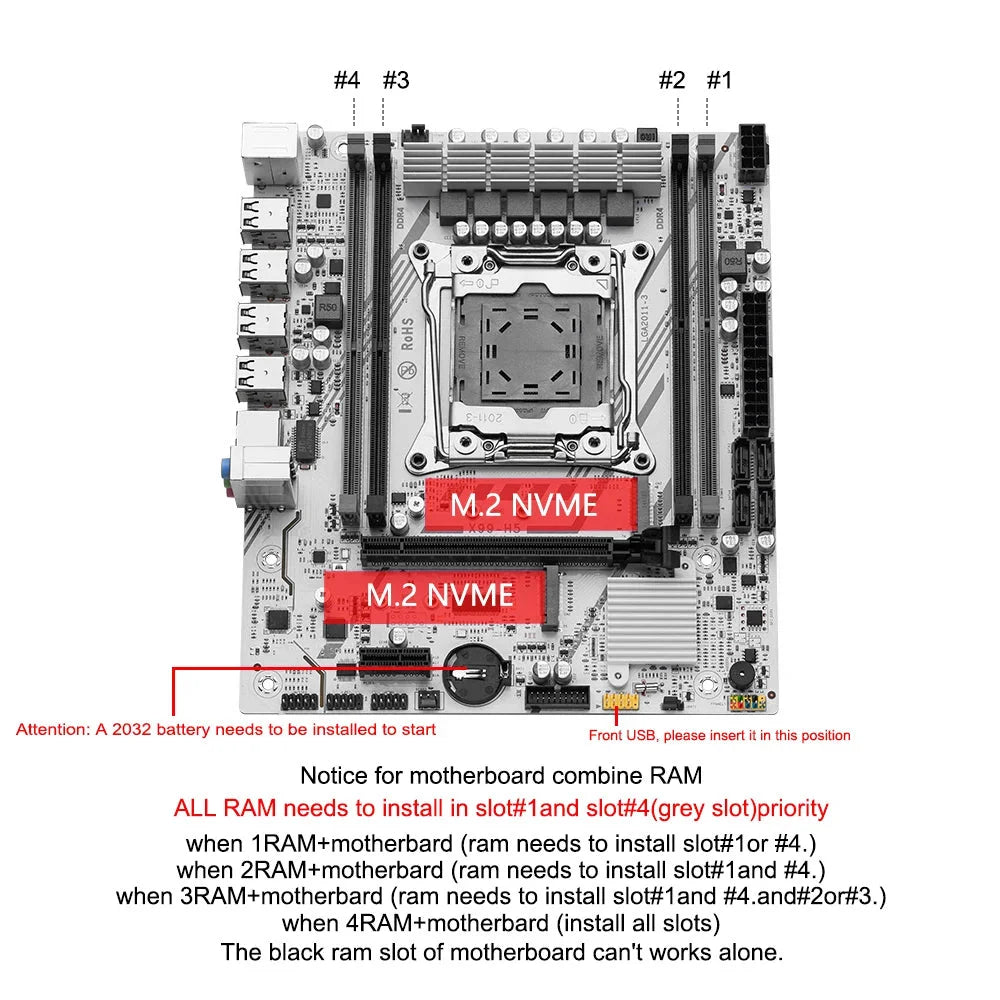

RAM Installation Instructions:

• For 1 RAM module, install in slot #1 or #4 (grey slot).
• For 2 RAM modules, install in slots #1 and #4 (grey slots).
• For 3 RAM modules, install in slots #1, #4, and #2 or #3.
• For 4 RAM modules, fill all slots.
• Note: The black RAM slots cannot work alone; the grey slots must be filled first.
