X99 P4F LGA2011-3 mATX Motherboard + Intel E5 2650 V4 CPU Support DDR4 NON-ECC

X99 P4F LGA2011-3 mATX Motherboard + Intel E5 2650 V4 CPU + DDR4 NON-ECC RAM Bundle

This bundle features the P4F motherboard, Intel Xeon E5 2650 V4 processor, and 16GB of DDR4 NON-ECC RAM. It offers a high-performance setup for demanding applications and tasks.

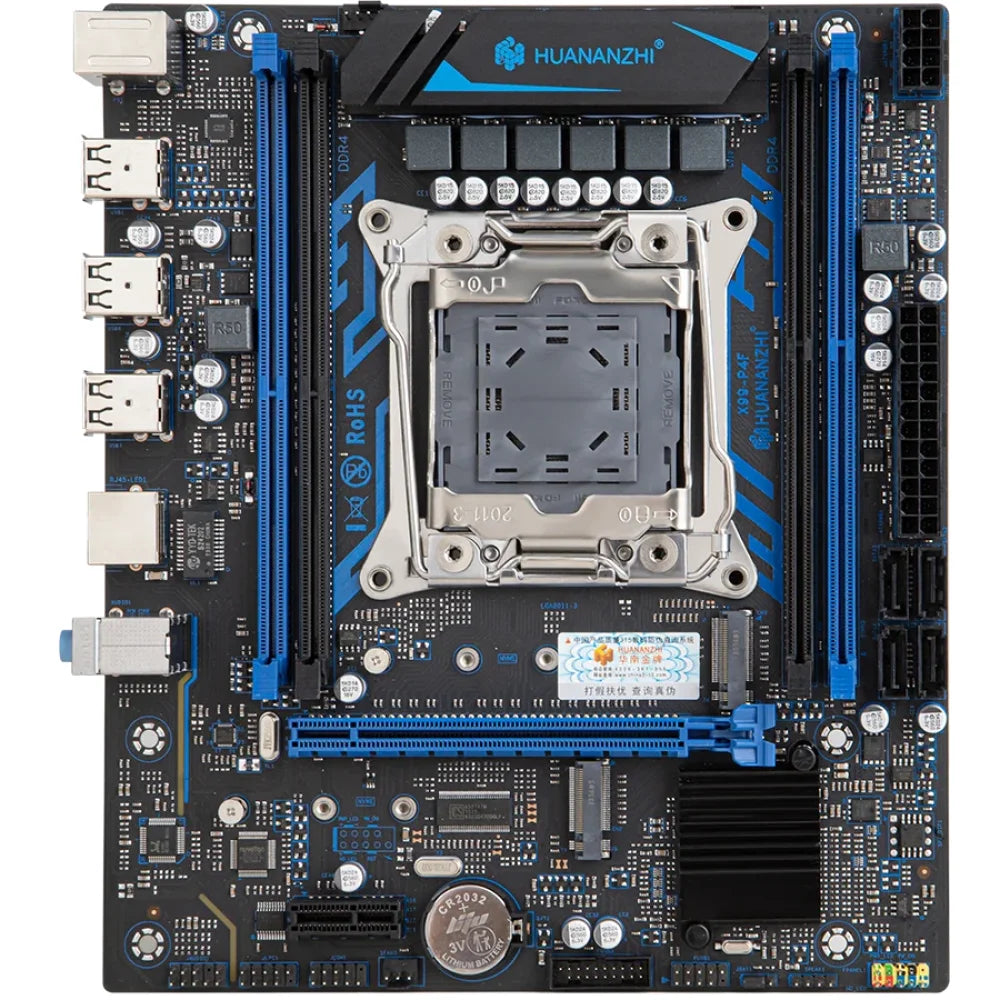

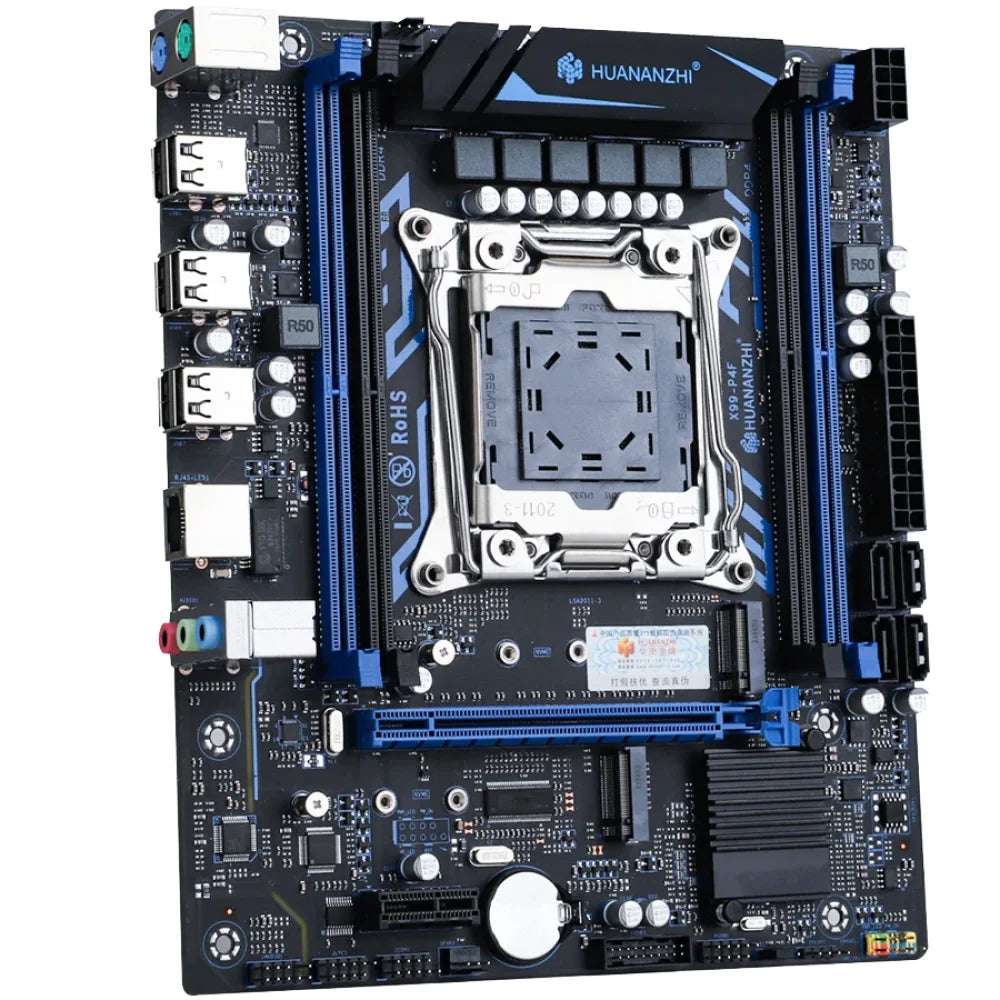

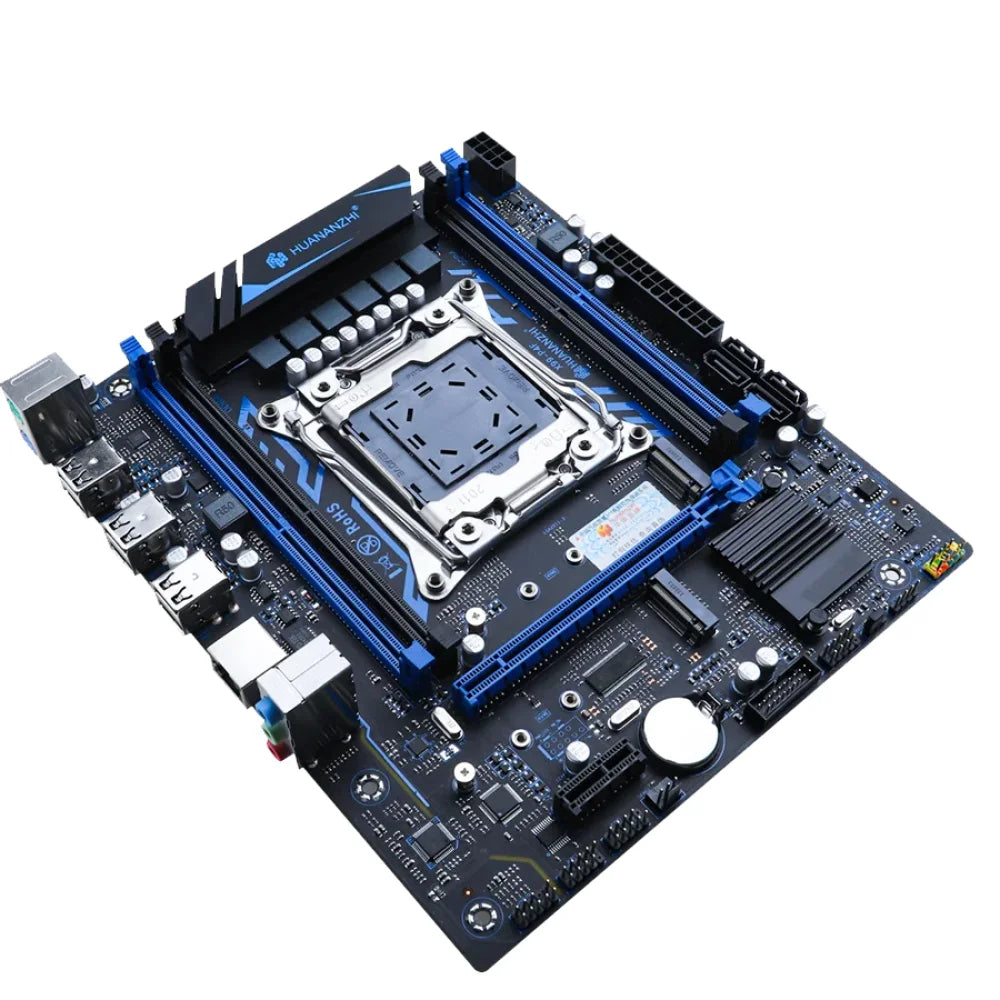

Motherboard Specifications:

• Model: P4F
• CPU Socket: Supports Intel LGA2011-3 platform processors
• Main Chipset: P55/H55 (chipset shipped randomly)
• Memory Socket: 4 x DDR4 memory slots
• Maximum Memory Capacity: 128GB
• Memory Standard: Dual-channel DDR4 2400/2133/1866MHz
• SATA Interface: 4 x SATA2.0 3Gb/s

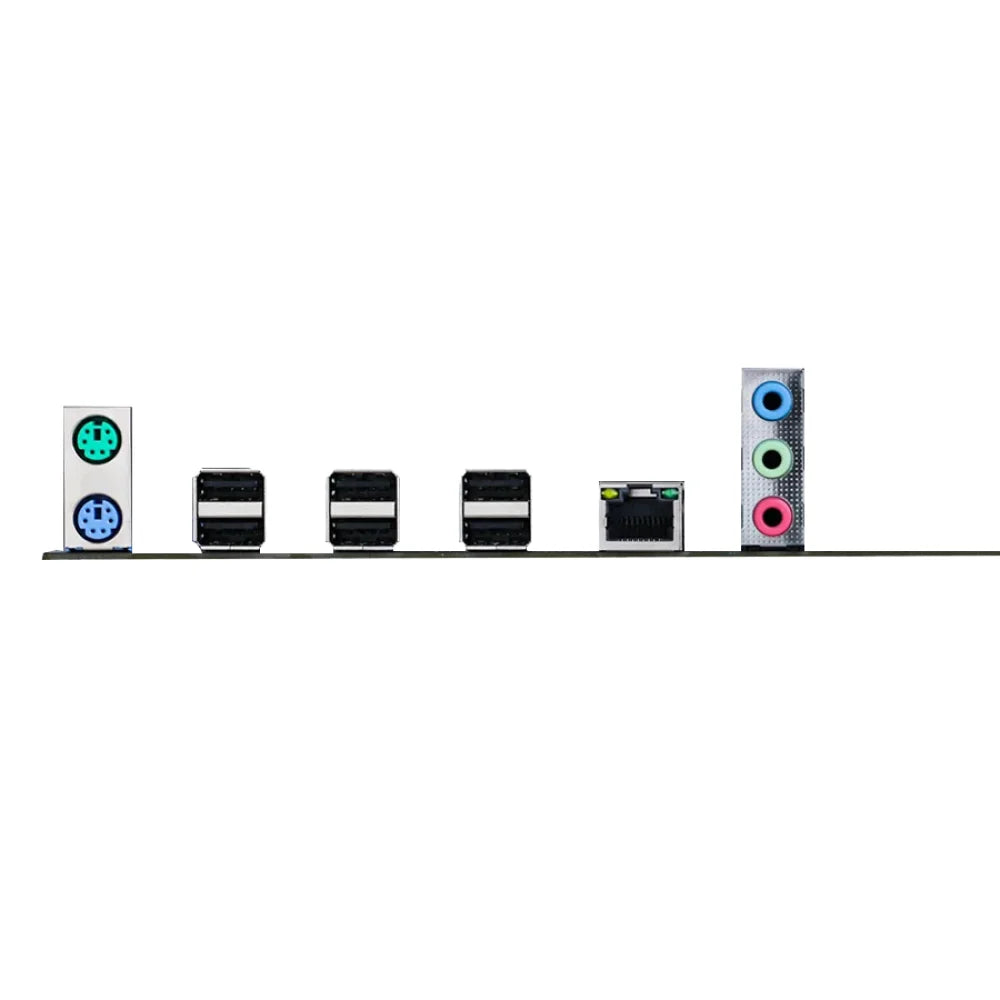

• Extended Interfaces: 2 x M.2 2280 NVMe PCIe x4 3.0, 6 x USB2.0, 1 x PS/2 keyboard and mouse, 1 x network interface, 1 x 3.5mm audio interface
• Front Panel Interface: 1 set of USB2.0 pins, 1 set of USB3.0 pins, 1 set of COM pins, 1 set of front audio pins, 1 set of CMOS jumper, 1 set of Debug pins, 1 set of buzzer pins, 1 set of power-on/restart pins
• Expansion Slots: 1 x PCI Express 3.0 x16, 1 x PCI Express 2.0 x1
• Audio: Realtek High Definition Audio
• Network Interface: Gigabit Ethernet
• Power Interface: 24-pin + 8-pin
• Fan Interfaces: 1 x CPU_FAN, 1 x SYS_FAN
• PCB Layer: 4 layers, 6-phase power supply
• Dimensions: 215mm x 185mm (M-ATX)
• Condition: Brand new

Processor Specifications:

• Model: Intel Xeon E5 2650 V4
• Cores/Threads: 12 cores / 24 threads
• Main Frequency: 2.2GHz
• Socket Type: LGA 2011-3
• 3rd Level Cache: 30MB
• Technology: 14nm
• Power Consumption: 105W
• Condition: Refurbished, fully tested and working.

Memory Specifications:

• Type: NON-ECC RAM
• Frequency: DDR4 2400MHz
• Capacity: 16GB (2 x 8GB)
• Condition: Brand new

Note:

• Please ensure your power supply is sufficient for this platform. A minimum of 500W from a reputable brand is recommended.
