X99 DDR4 Intel LGA2011-3 mATX Gaming Motherboard with M.2 Support USB3.0 PCIEx16

X99 DDR4 Intel LGA2011-3 mATX Gaming Motherboard with M.2 Support USB 3.0 PCIEx16

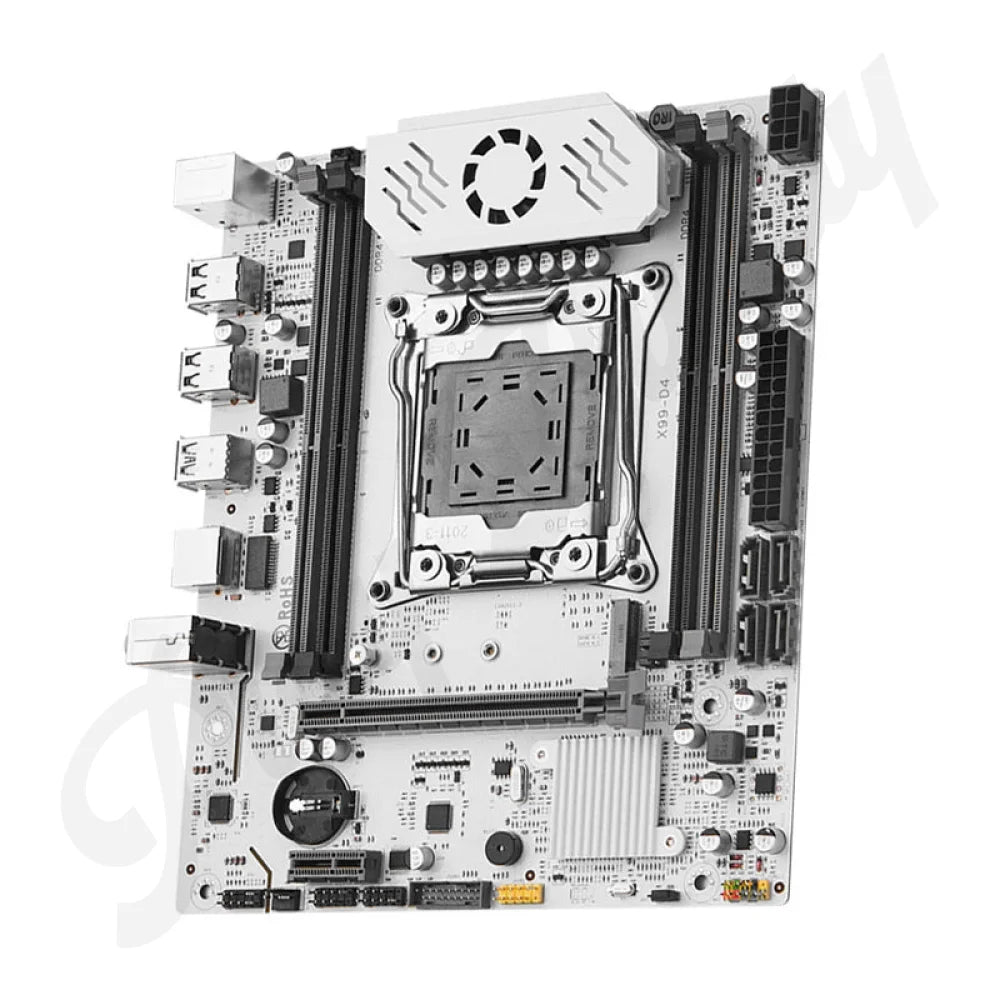

The X99 mATX Gaming Motherboard is designed for high-performance gaming setups, supporting Intel's LGA2011-3 socket and DDR4 memory for excellent speed and multitasking capability. With support for M.2 NVMe SSDs, USB 3.0, and PCIe 3.0 expansion slots, this motherboard is perfect for users looking for fast data transfer and seamless performance in a compact form factor.

Key Features & Benefits:

• Processor Compatibility: Supports Intel LGA 2011-3 processors, including the E5 V3 and V4 series.
• Memory Support: 4 DDR4 slots, supporting up to 128GB of RAM, with dual-channel support for non-ECC, REG ECC, and ECC memory. Note that server and desktop RAM cannot be mixed.
• Storage Options: Equipped with SATA 2.0, SATA 3.0, and M.2 NVMe slots for versatile storage solutions.
• Expansion Slots: Includes one PCIe 3.0 x16 and one PCIe x1 slot for graphics cards and other expansion cards.
• USB Connectivity: 2 USB 3.0 and several USB 2.0 ports for fast data transfer and peripheral connections.
• Networking: Integrated Gigabit Ethernet with RJ45 port for fast, reliable network connections.
• Compact Design: Micro-ATX form factor (215mm x 190mm), ideal for smaller gaming builds without sacrificing power.
• Power Connectors: Includes an 8-pin CPU and a 24-pin ATX power connector for stable power delivery.
• Compatibility: Supports M.2 NVME/NGFF SSDs for high-speed storage, providing faster boot times and data transfers.

Specifications:

• Chipset: Intel X99
• CPU Socket: LGA2011-3
• Memory Slots: 4 x DDR4, up to 128GB
• Memory Channels: Dual-channel support for DDR4 3200/2666/2400/2133/1866 MHz
• Storage Interfaces: 1 x M.2 NVMe, 1 x SATA 3.0, 2 x SATA 2.0
• PCIe Slots: 1 x PCIe 3.0 x16, 1 x PCIe x1
• Back I/O Ports: 1 x RJ45, 2 x USB 3.0, 4 x USB 2.0
• Power Connectors: 24-pin ATX, 8-pin CPU
• Form Factor: Micro-ATX (215mm x 190mm)
• Integrated Video Card: None
• Weight: Approximately 0.9kg (including packaging)

Important Notices:

• Install RAM in slots #1 and #4 (grey slots) as a priority for best performance.
• The black RAM slots cannot work alone, and all RAM should be installed as per the instructions.
• The front USB must be inserted into the correct yellow-pin position for proper function.
• Server and desktop RAM cannot be mixed due to compatibility issues.
