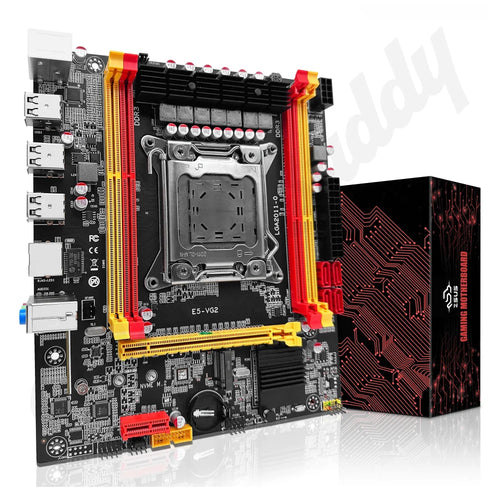

X79-VG2 Intel LGA2011 Gaming Motherboard DDR3 M.2 NVMe for Xeon V1 V2 CPUs

X79-VG2 Intel LGA2011 Gaming Motherboard DDR3 M.2 NVMe for Xeon V1 V2 CPUs

The X79-VG2 motherboard is designed to offer high performance and extensive features for gaming and professional use. With support for Intel Xeon V1 and V2 CPUs, DDR3 memory, and NVMe M.2 storage, this motherboard provides a solid foundation for powerful and efficient computing.

Features and Specifications:

• Chipset: H61
• CPU Socket: Intel LGA2011
• Maximum RAM Capacity: 128 GB
• Memory Type: DDR3
• Number of Memory Slots: 4
• Memory Channels: Dual channel
• Storage Interfaces: 1 x M.2 (NVMe), 4 x SATA 2.0
• PCI-E Standards: PCI-E 3.0
• Number of PCIe x 16 Slots: 1
• Number of PCIe x 1 Slots: 1
• Back I/O Ports: 1 x RJ45, 1 x PS/2, 1 x Audio Jack, 4 x USB 2.0, 2 x USB 3.0
• Max LAN Speed: 1000 Mbps
• Form Factor: Micro-ATX
• Dimensions: 217 mm x 187 mm

Detailed Description:

• Model: ZSUS X79-VG2
• Chipset: H61 series chipset for balanced performance and compatibility.
• Memory Support: Dual channel DDR3, supports 1066/1333/1600/1866 MHz speeds with a maximum capacity of 128 GB. Ideal for demanding applications and multitasking.
• Audio: Integrated audio interface with MIC-IN, LINE OUT, and LINE IN for basic sound needs.
• Networking: Realtek Gigabit Ethernet card for reliable network connectivity.
• USB Ports: A total of 10 USB interfaces including 8 x USB 2.0 and 2 x USB 3.0 for versatile peripheral connections.
• Expansion Slots: Two PCIe x16 slots and one PCIe x1 slot for graphics and other expansion cards.
• SATA Ports: Four SATA 2.0 ports for connecting storage devices.
• Power Connectors: 1 x 8-pin and 1 x 24-pin connectors to ensure stable power supply.
• M.2 Port: 1 M.2 port supporting PCIe M.2 or SATA M.2 SSDs for high-speed storage.

Package Includes:

• 1 x X79 VG2 LGA 2011 Motherboard
• 1 x SATA Cable
• 1 x Motherboard I/O Shield
• 1 x Motherboard Installation Manual

Notes:

• Memory Installation: Install all RAM in slot #1 and slot #2 (yellow slots) for priority. The red RAM slots (#3/#4) cannot function independently. Ensure memory is inserted into the yellow main slots first.
