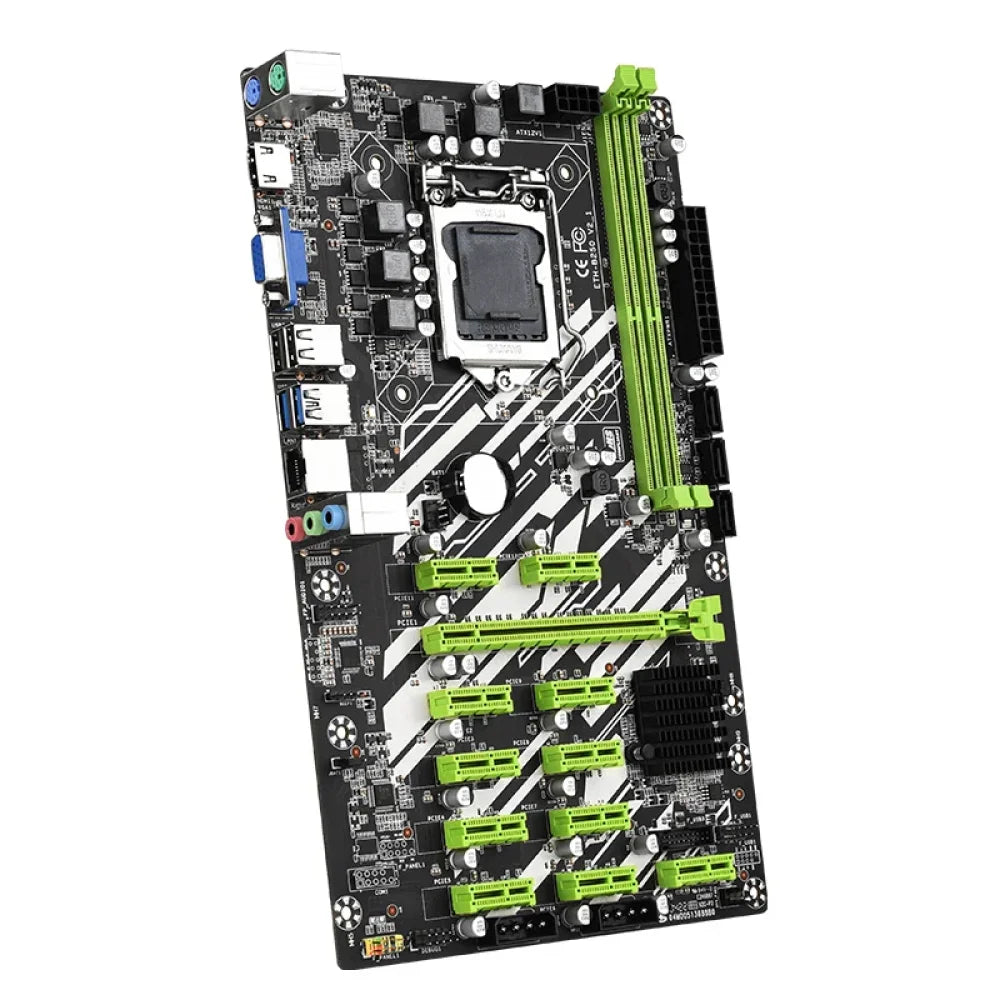

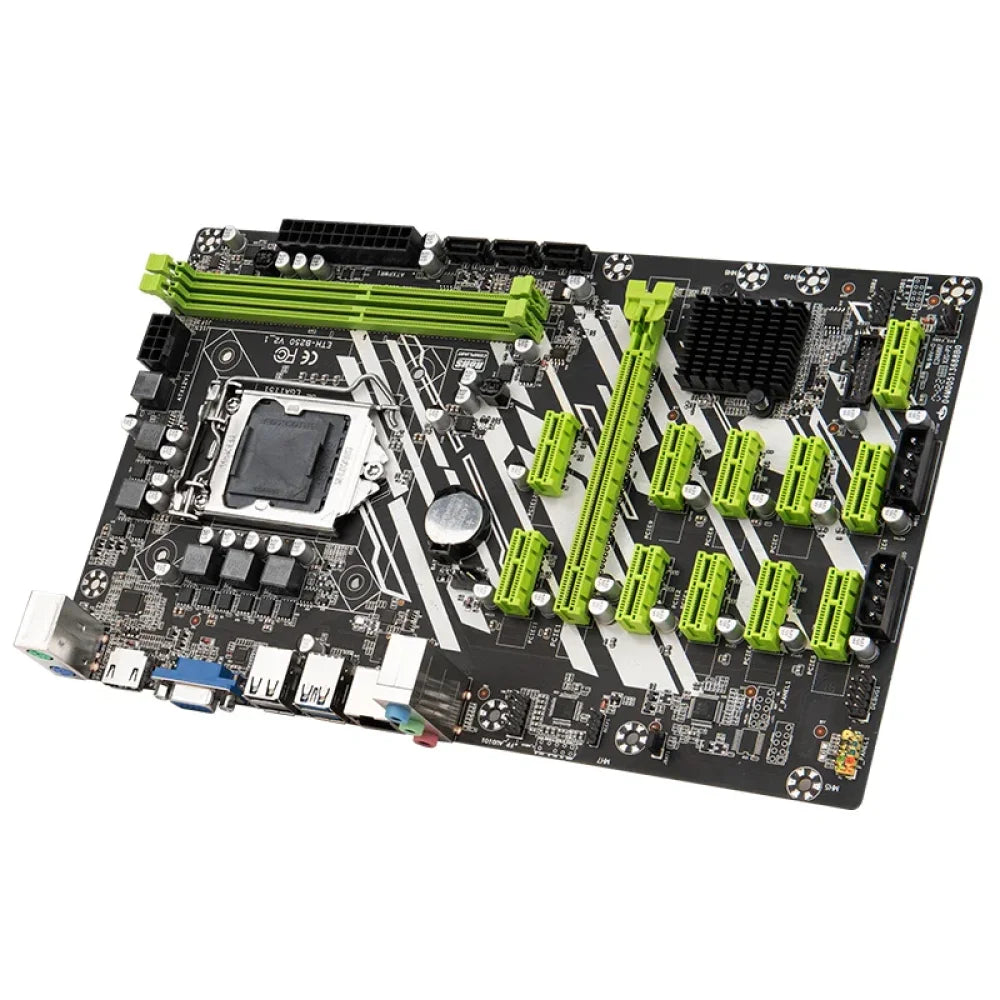

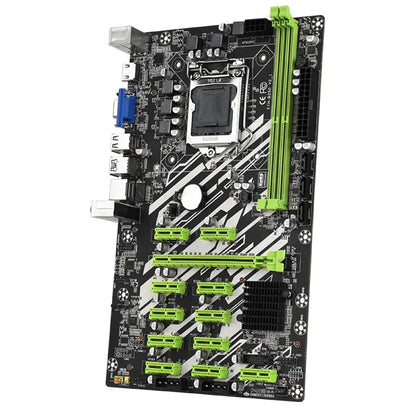

B250 LGA1151 Mining Motherboard 12 GPUs DDR4 DIMM RAM SATA3.0 HD-VGA ETH Miner

B250 LGA1151 Mining Motherboard 12 GPUs DDR4 DIMM RAM SATA3.0 HD-VGA ETH Miner

The B250 Mining Motherboard is designed for cryptocurrency mining, supporting up to 12 GPUs with DDR4 DIMM RAM. It offers reliable performance with a low power consumption design, making it ideal for mining rigs. The motherboard is built with high-quality components and a 10-layer PCB, ensuring stability and durability for long-term mining operations.

• Supports mining and official use
• Quick start, loading, and file transfer
• Low power consumption with quiet and reliable performance
• Rock-solid quality with 10-layer PCB design
• 100% brand new and high quality

Specifications:

• Form Factor: M-ATX, 281.36mm x 170mm
• Chipset: Intel B250
• CPU Socket: LGA 1151 (Supports Intel Core, Pentium, and Celeron 6th/7th/8th Gen Processors, does not support 9th Gen CPUs)
• Memory Type: 2x DDR4 desktop RAM (2133/2400/2666MHz, dual-channel, no ECC/REG RAM support)
• PCIe Slots: 1x PCIe 16X (GEN3), 11x USB 3.0 (x1 GEN1.1)
• Graphics: Onboard core graphics with support for HD/VGA or discrete cards via PCIe x16
• Storage: 3x SATA 3.0 ports
• USB Ports: 4x USB 3.0, 4x USB 2.0
• LAN: Onboard Realtek RTL8111H Gigabit Ethernet (supports Wake on LAN and PXE Boot)
• Audio: Onboard Realtek ALC662 5.1 channel audio
• Power Supply: ATX 24-pin + ATX 8-pin

Please ensure your power supply meets the requirement (minimum 500W branded power supply).
