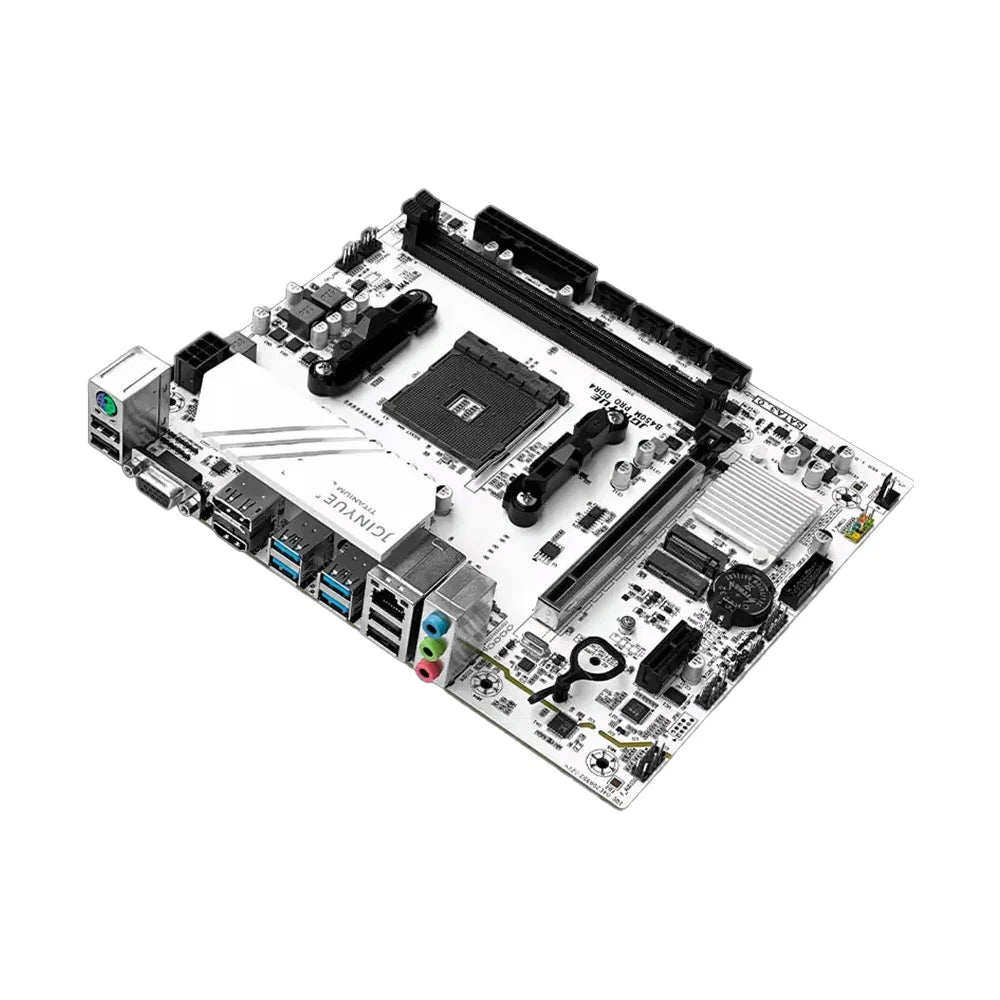

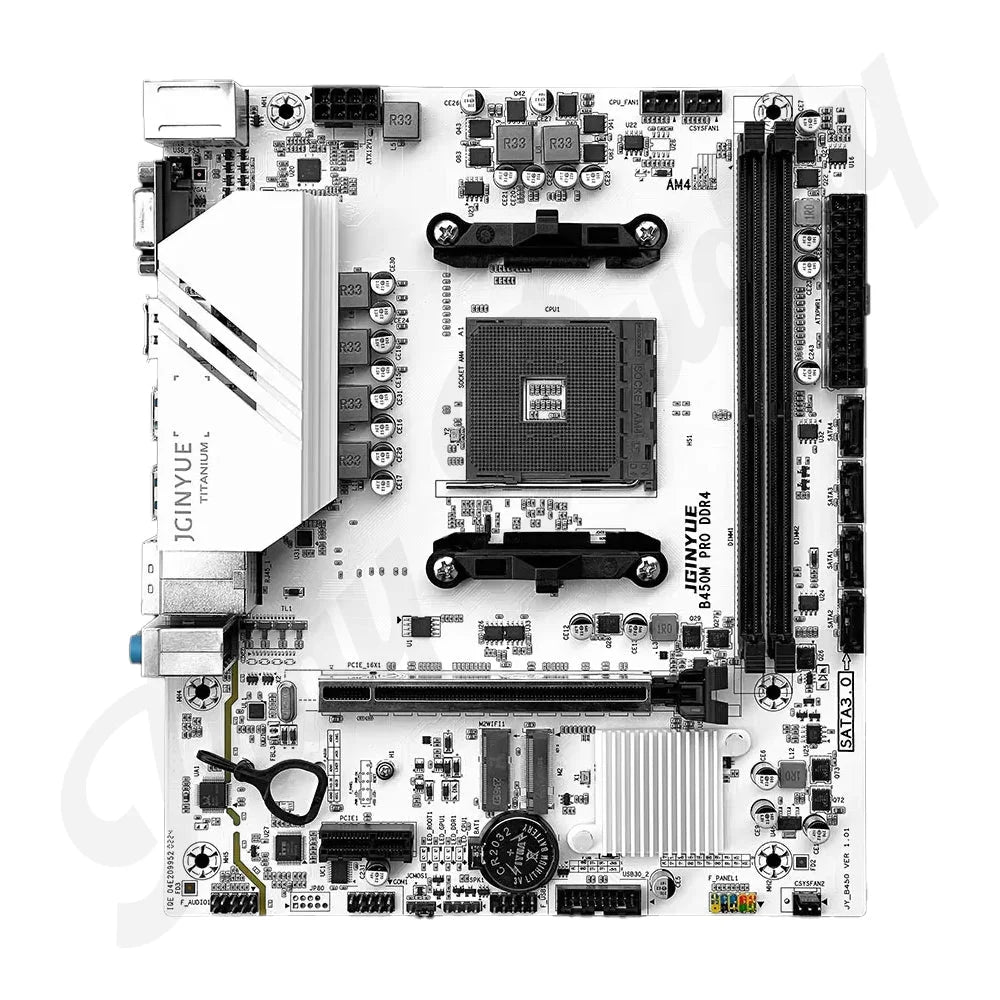

B450M PRO Motherboard - AMD AM4 Support

The B450M PRO motherboard offers robust performance and compatibility for AMD Ryzen processors. Featuring advanced memory support, multiple connectivity options, and a compact M-ATX design, this motherboard is ideal for building high-performance PCs for gaming, work, or entertainment.

Features and Benefits

• Processor Compatibility: Supports AMD AM4 1000/2000/3000/4000/5000 series processors, including Ryzen R3, R5, and R7 CPUs.
• Memory Support: Dual-channel 2 DDR4 memory slots with a maximum capacity of 32GB. Compatible with memory frequencies from 2133MHz to 4000MHz (supports XMP technology; performance varies depending on CPU and memory configurations).
• Display Interfaces: Equipped with HDMI, DP, and VGA outputs for versatile display connectivity.
• Storage Options: Features 4 SATA3.0 ports and 1 M.2 NVME 3.0 interface for high-speed storage solutions.

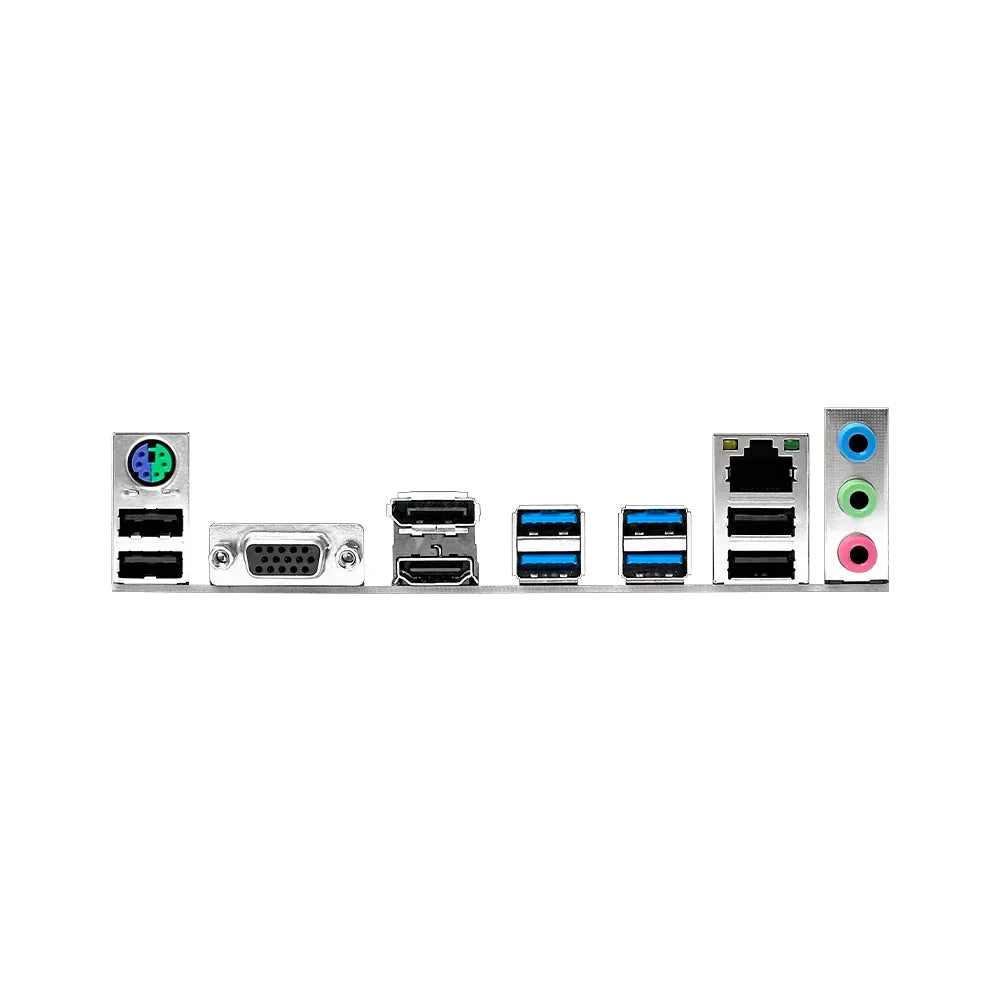

• Connectivity: Rear panel includes 4 USB 3.0 and 4 USB 2.0 ports. Front panel supports 1 USB 3.0 and 1 USB 2.0 port.
• Expansion Slots: Includes 1 PCI Express x16 3.0 slot for adding dedicated graphics or other expansion cards.
• Compact Form Factor: M-ATX design makes it suitable for smaller PC builds without compromising on features.

Specifications

• Model: B450M PRO
• Processor Support: AMD AM4 1000/2000/3000/4000/5000 series processors
• Memory: 2 DDR4 slots, up to 32GB, 2133/2400/2666/3000/3200/3600/4000MHz
• Display Interfaces: 1 HDMI, 1 DP, 1 VGA
• Storage: 4 SATA3.0 ports, 1 M.2 NVME protocol 3.0 interface
• USB Ports: Rear: 4 USB 3.0, 4 USB 2.0; Front: 1 USB 3.0, 1 USB 2.0
• Expansion Slot: 1 PCI Express x16 3.0
• Network Type: Realtek 8111H Gigabit Ethernet Network Chip
• Wi-Fi Interface: 1 XM 2 WiFi Interface (Supports PCIE Protocol)
• Audio Chip: Realtek ALC897
• Power Interface: 24Pin + 8Pin
• Fan Pins: 2x 4Pins, 1x 3Pins
• Size: M-ATX, 22.5cm x 19cm
